Meriam Buih Trak Bomba PL24

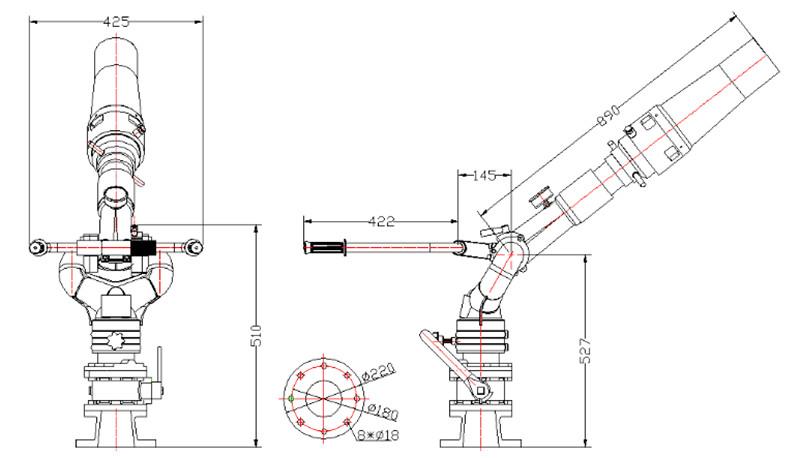

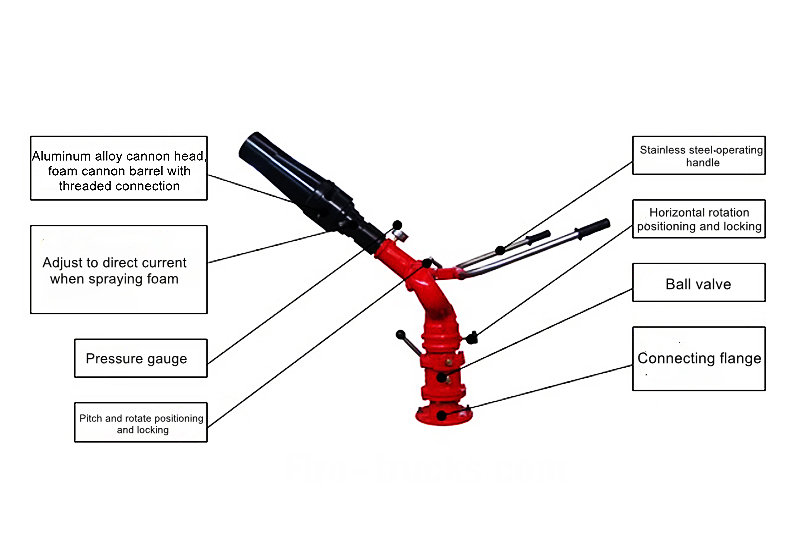

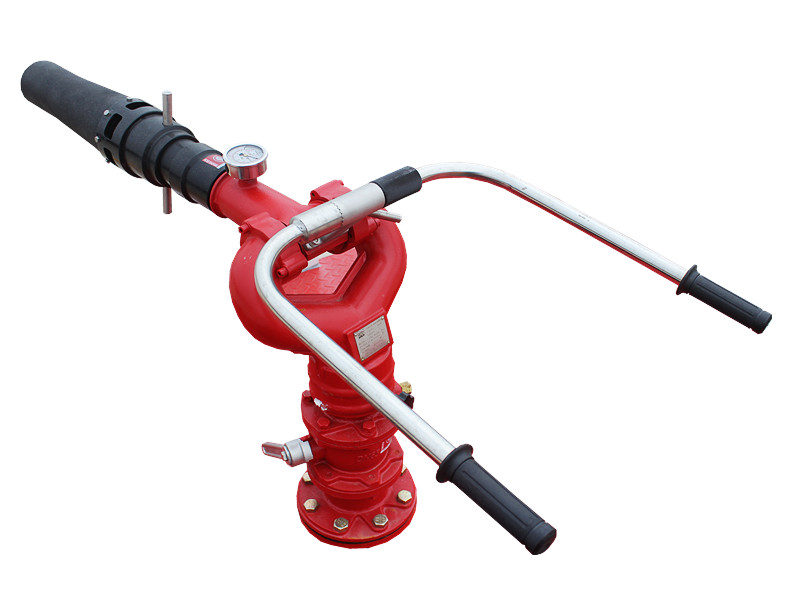

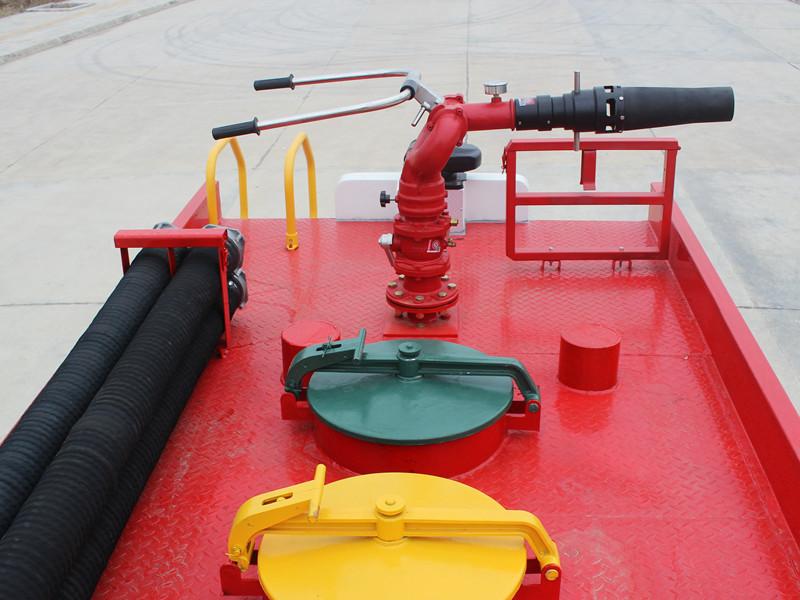

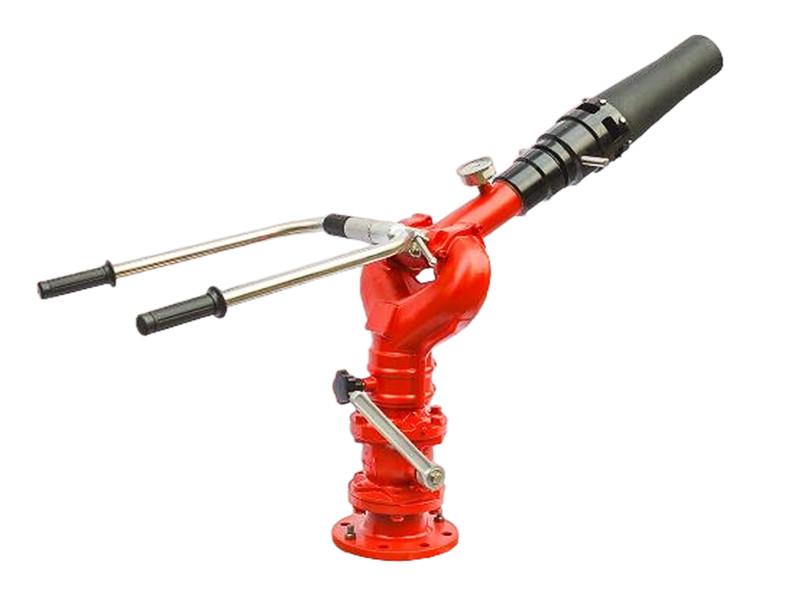

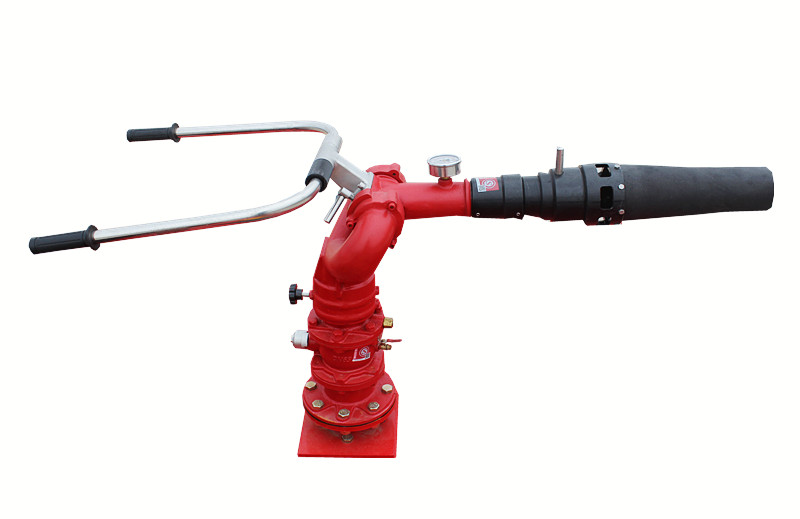

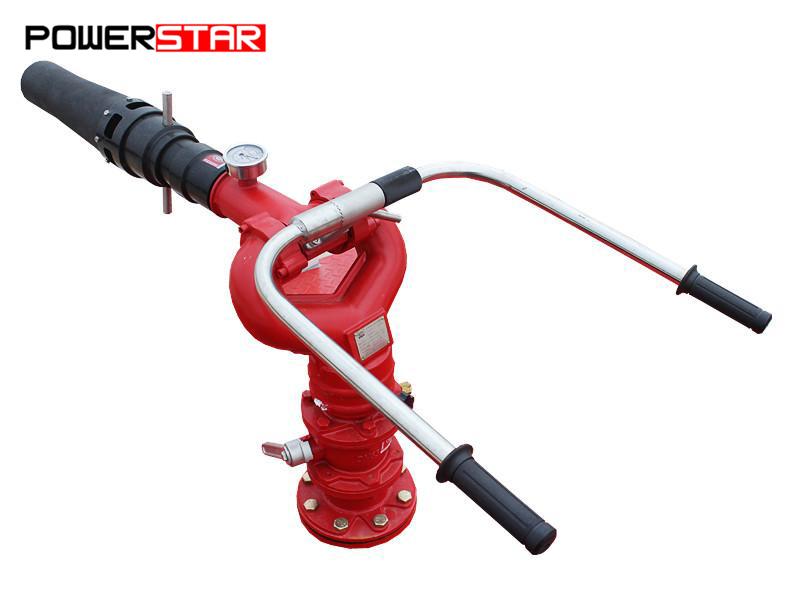

Fire Truck Foam Cannon PL48 ialah pemantau kebakaran manual yang boleh menyembur kedua-dua buih dan air. Ia mempunyai kadar aliran berkadar 48 L/s, tekanan berkadar 0.8 MPa, julat semburan air ≥70 m, dan julat semburan buih ≥60 m. Monitor boleh berputar 360° secara mendatar dan mempunyai sudut ketinggian -30° hingga 70°, menawarkan operasi yang fleksibel.

The SITRAK 8×4 18500L foam fire truck is built on a SITRAK ZZ5446V516MF1 8×4 chassis with a 1950+4600+1400 mm wheelbase. It is powered by an MC11.46-61 engine rated at 460 HP and paired with a manual transmission. The vehicle carries a 12000L water tank and a 6500L foam tank. A Hill CB10/150-8FC fire pump (150 L/s at 1.0 MPa) and a roof mounted Akron PLKD10/100B-5178 monitor (100 L/s, water ≥90 m, foam ≥85 m) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, foam gun, and basic tool kit.

The HOWO TX 4 ton dry powder emergency fire truck is powered by a 350 HP MC07H.35-60 engine on a 4×2 chassis. It features 2000kg dry powder and 2000kg foam/water tanks, a CB10/60 fire pump (60 L/s), a PF5-15/30 dry powder cannon (30-35kg/s, range ≥35m), and a PL8/48 foam/water monitor (48 L/s, water ≥70m, foam ≥60m). This triple agent truck handles Class A, B, and C fires, making it a versatile choice for industrial fire protection, chemical plants, and oil depots.

The HOWO TX 460HP foam fire tender is powered by a 460 HP MC11.46-60 engine on an 8×4 chassis. It features a 20000L water tank and a 5000L foam tank, a CB10/120 fire pump (120 L/s), and a PL8/64 monitor (64 L/s, water ≥70m, foam ≥65m). Standard gear includes fire hoses, suction tubes, couplings, foam gun, and basic tool kit. Additional equipment includes monitor control system, liquid level gauge, pressure gauge, emergency lighting, reverse camera, fire extinguisher, grounding device, and PTO control switch.

The HOWO 6000L water bowser pumper fire truck is built on a HOWO TX 350 4×2 chassis with a 4700 mm wheelbase. It is powered by a MC07H.35-60 engine rated at 350 HP and paired with a manual transmission. The vehicle carries a 6000L water tank. A CB10/60-RS fire pump (60 L/s at 1.0 MPa) and a roof mounted PS60 monitor (60 L/s, ≥60 m range) handle fire suppression. Standard equipment includes fire hoses, suction tubes, couplings, water/foam gun, and basic tool kit.

Pam kebakaran kenderaan tekanan rendah CB10/60 dicirikan oleh prestasi cemerlang, kecekapan tinggi, struktur padat, reka bentuk estetik, operasi mudah dan penyelenggaraan yang mudah. Ia sesuai untuk trak bomba tangki air sederhana dan berat, trak bomba busa, dan trak bomba menara air, dsb.

Trak bomba busa Howo TX460 6x4 12 cbm menggunakan kabin Sinotruk TX 6x4, dengan jarak roda 4600+1400mm, dan dilengkapi dengan enjin SINOTRUK MC11.46-61 dan kotak gear HW19710. Bahagian hadapan struktur atas menempatkan petak peralatan untuk menyimpan pelbagai peralatan pemadam kebakaran, manakala bahagian tengah mengandungi tangki air keluli karbon 9 meter padu dan tangki busa 3 meter padu. Bahagian belakang menempatkan bilik pam, dilengkapi dengan pam bomba CB10/60-RS, panel kawalan, dan beberapa peralatan pemadam kebakaran tambahan. Tangki air dan busa di atas bumbung dilengkapi dengan lubang masuk, dan monitor kebakaran PL8/48 juga disertakan.

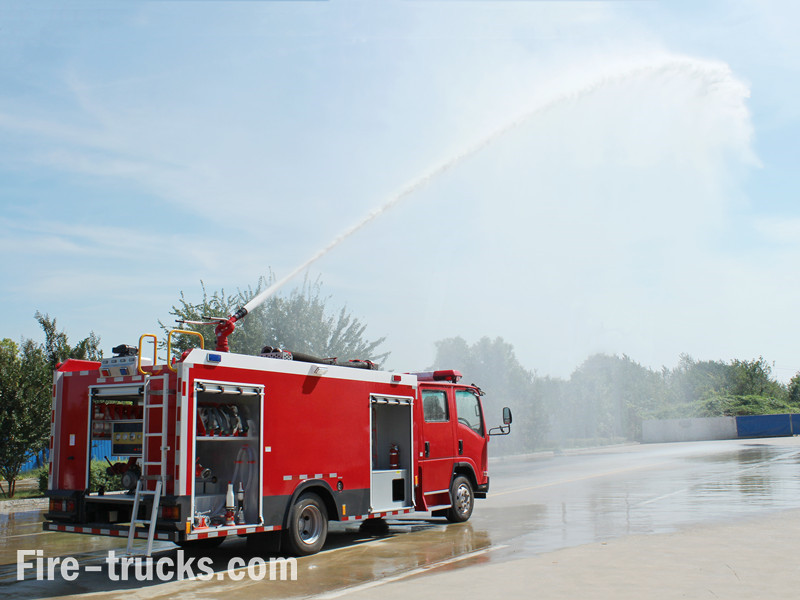

The ISUZU NPR 189HP 4x2 foam water fire tender truck for the Philippines is built on an ISUZU 4×2 chassis with a 3815 mm wheelbase. It runs on a 4HK1-TCG61 engine rated at 189 HP with an Allison automatic transmission. The truck carries a 2500L water tank and a 1000L foam tank. A CB10/40 pump (40 L/s at 1.0 MPa) and a roof mounted PL8/32 monitor (32 L/s, water ≥60 m, foam ≥48 m) handle fire suppression. Standard gear includes hoses, suction tubes, couplings, foam gun, and basic tool kit.
