Which Type of Fire Truck Is Most Suitable for Industrial Firefighting?-fire-trucks.com

Bahagian Lori Bomba

Industrial fires are fundamentally different from ordinary structural fires. Petrochemical plants primarily face flammable liquid and combustible gas fires, while manufacturing facilities and warehousing logistics centers more often deal with ordinary combustible materials — this is why different types of industrial fire trucks are required for different fire risks.

Which Type of Fire Truck Is Most Suitable for Industrial Firefighting

This article compares water fire trucks, foam fire trucks, dry powder fire trucks, and combination units. This comprehensive buying guide helps procurement managers, engineers, distributors, and contractors understand the key differences between industrial fire truck types and select the most suitable vehicle for their specific industrial firefighting needs.

» I. Quick Answer: Which Fire Truck Is Best for Industrial Firefighting?

Selection should be based on fire type, industry characteristics, and extinguishing requirements:

Industry	Recommended Fire Truck	Reason
Petrochemical	Water + Foam + Dry Powder Combination Unit	Covers Class A, B, C, and electrical fires; adapts to complex fire scenarios
Natural Gas / LNG	Dry Powder Fire Truck	Fast knockdown on gas fires; reduces re-ignition risk
General Manufacturing	Water Fire Truck	Lower cost; suitable for Class A fires; simple maintenance
Warehousing & Logistics	Foam Fire Truck	Can handle both ordinary combustibles and some liquid fires
Power Plant	Dry Powder + Foam Fire Truck	Meets both electrical equipment and oil fire suppression needs
Mining	6x4 Water Fire Truck	High load capacity; good off-road capability; suitable for rough terrain

In simple terms:

General industrial facilities: A water fire truck is usually sufficient.
Petroleum and chemical industries: A foam fire truck is the first choice.
Special industries (natural gas, electrical equipment): A dry powder fire truck is recommended.
Large integrated industrial parks: A water + foam + dry powder combination unit provides the most comprehensive firefighting capability and is the most versatile choice.

» II. Understanding Industrial Fire Risks

Before selecting a fire truck, buyers must understand the fire hazards present at their facility. Industrial fires are classified by the type of fuel involved.

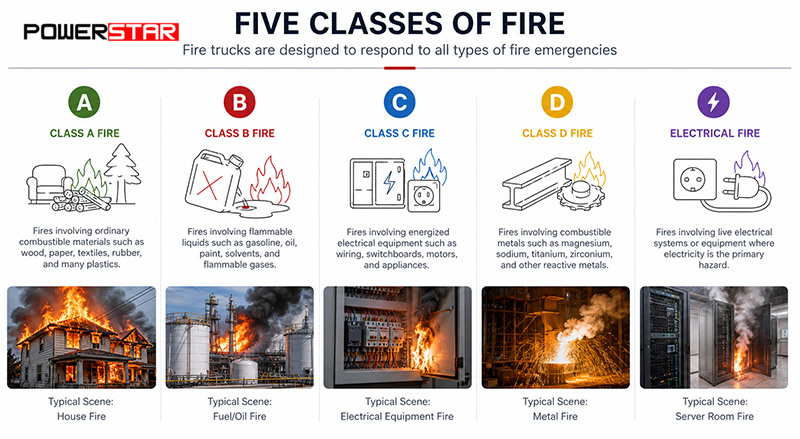

Fire Classifications for Industrial Settings

Fire Class	Fuel Type	Examples	Extinguishing Agent Required
Class A	Ordinary combustibles	Wood, paper, cloth, rubber, plastics (solid materials)	Water, foam, dry powder
Class B	Flammable liquids	Gasoline, oil, diesel, chemicals, solvents	Foam, dry powder, CO2
Class C	Flammable gases	Methane, propane, hydrogen, natural gas	Dry powder, gas interruption
Class D	Combustible metals	Magnesium, titanium, sodium, aluminum powder	Specialized dry powder only
Electrical	Energized equipment	Transformers, switchgear, power lines	Dry powder, CO2 (non-conductive)

Key insight: Most industrial facilities face Class B (flammable liquids) and Class C (gases) as their primary risks. This is why water-only fire trucks are rarely the best choice for industrial firefighting.

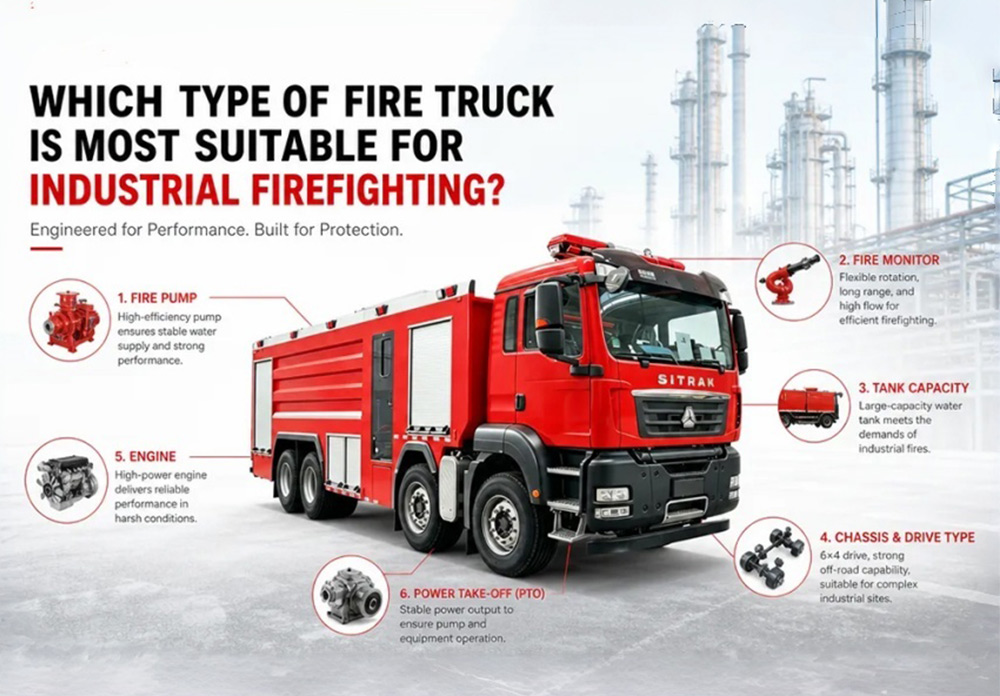

» III. Ten Key Technical Parameters of Industrial Fire Trucks

Before diving into fire truck types, buyers need to understand the ten key technical parameters that determine a fire truck's industrial firefighting capability:

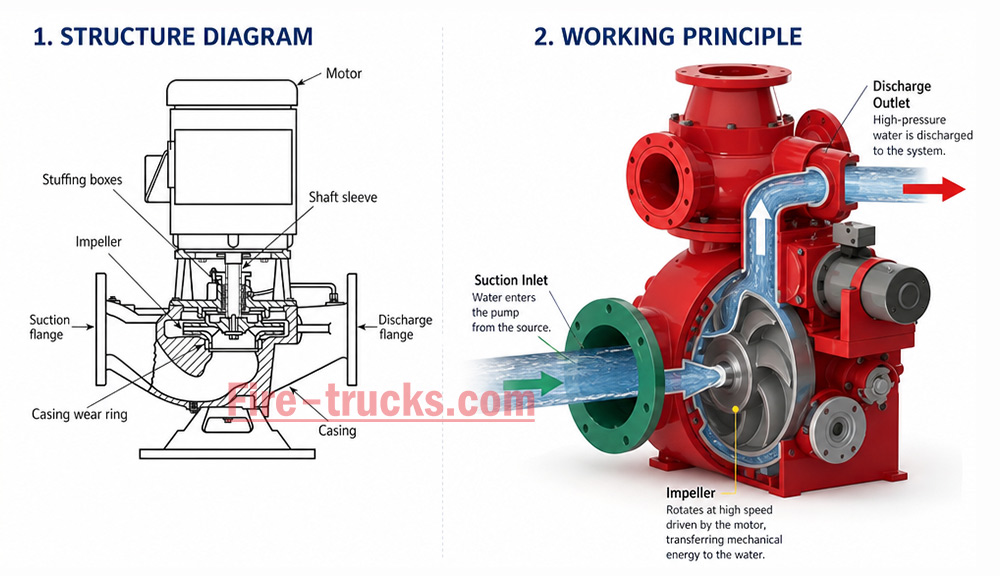

1. Fire Pump

The fire pump is the heart of the fire truck. It draws extinguishing agent from the tank and pressurizes it for delivery through hoses and monitors. Pump selection determines the flow rate and pressure available for firefighting.

Pump Type	Flow Rate	Typical Application
Single-stage centrifugal	1,000–3,000 L/min	Municipal-style industrial trucks
Two-stage centrifugal	2,000–6,000 L/min	Large industrial pumpers
High-pressure pump	Up to 4.0 MPa	High-rise and long-distance applications

Key pump parameters:

Flow rate: Determines how much extinguishing agent can be delivered per minute
Pressure: Determines how far the agent can be projected
Priming system: Required for drafting from static water sources

The pump is typically driven by the truck's engine through a power take-off (PTO) system. When the PTO engages, engine power is redirected to spin the pump impeller at high speed, creating pressure that propels the extinguishing agent through the discharge system.

2. Extinguishing Agent

The extinguishing agent is the chemical or physical medium used to suppress the fire. Different agents work on different fire classes.

Agent Type	Best For	Limitations
Water	Class A fires (ordinary combustibles)	Ineffective on Class B/C/D fires; dangerous for electrical fires
Foam (AFFF/AR-AFFF)	Class B fires (flammable liquids)	Ineffective on gas fires; requires proportioning system
Dry powder	Class B/C and electrical fires	No cooling effect; powder cloud reduces visibility
CO2	Electrical fires, small enclosed spaces	Limited quantity; suffocation hazard

Foam proportioning systems:

Foam trucks require proportioning systems to mix foam concentrate with water at precise ratios (1%, 3%, or 6%).

Proportioner Type	Mixing Ratio	Application
Fixed proportioner	3% or 6% fixed	Constant flow operations
Fully automatic proportioner	1%–6% adjustable	Variable flow conditions

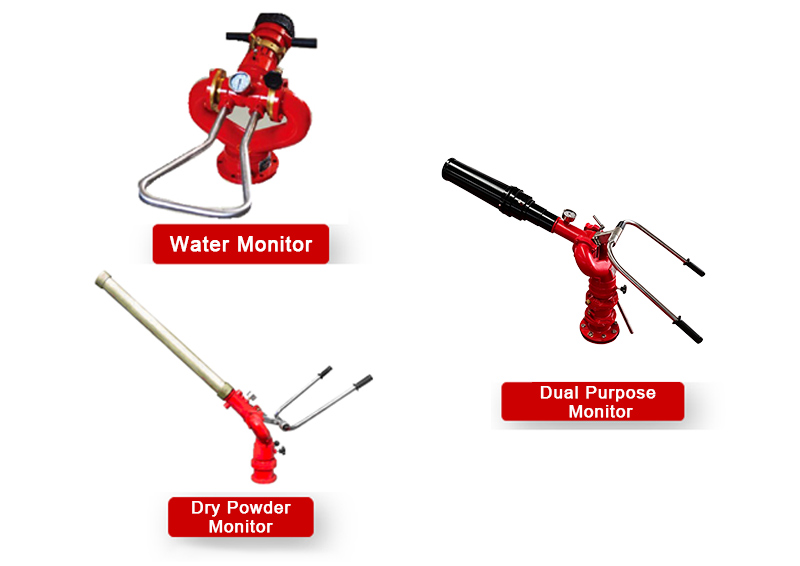

3. Fire Monitor

The fire monitor is the primary delivery device for industrial firefighting. It is mounted on the roof or turntable of the truck and allows remote operation at a safe distance from the fire.

Monitor Type	Flow Rate	Range	Application
Manual monitor	1,200–4,000 L/min	40–60 m	Smaller facilities
Remote-controlled monitor	2,000–6,000 L/min	60–80 m	Petrochemical plants, refineries
Foam monitor	1,000–4,000 L/min	50–70 m	Flammable liquid fires

Monitor features:

Horizontal rotation: 360° continuous
Vertical tilt: -30° to +70° (typical)
Dual-purpose design: Water and foam compatible
Remote control capability: Allows operation from a safe distance

4. Tank Capacity (Water & Foam Tank Capacity)

Water and foam tank capacity determines how long the fire truck can sustain firefighting operations and is a key parameter affecting vehicle endurance.

General guidelines:

3,000–5,000 L: Suitable for small to medium-sized factories
6,000–8,000 L: Suitable for large manufacturing enterprises
10,000 L and above: Suitable for petrochemical plants, ports, airports, and other large industrial facilities

5. Chassis and Drive Configuration

The chassis determines the fire truck's load capacity, power performance, and off-road capability.

Common drive configurations:

4×2: Suitable for ordinary factories and urban industrial parks
4×4: Suitable for mountainous areas, forest regions, and rough terrain
6×4: Suitable for large industrial fire trucks, balancing load capacity and maneuverability
6×6: Suitable for mining, oil fields, and off-road environments
8×4: Suitable for extra-large capacity water and foam fire trucks

6. Engine Power

The engine is responsible not only for driving the vehicle but also for providing stable power to the fire pump and PTO system.

Common power ranges:

220–280 hp: Medium-duty fire trucks
300–400 hp: Large fire trucks
450 hp and above: Heavy-duty industrial fire trucks

Procurement advice: Engine power should match the vehicle's gross mass and fire system configuration.

7. PTO and Control System

The PTO (Power Take-Off) is responsible for transferring engine power to the fire pump and is a critical component for normal fire truck operation.

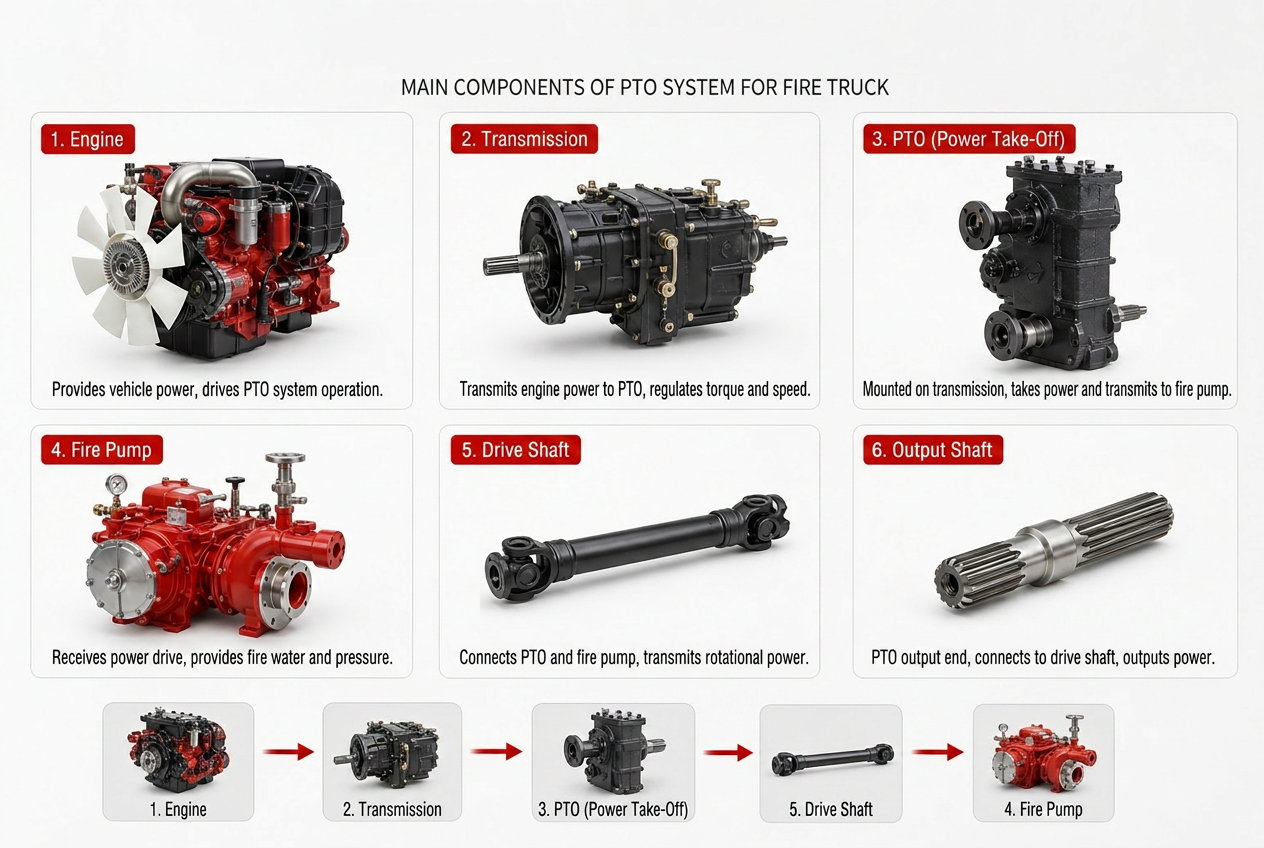

fire truck power transmission diagram

Modern industrial fire trucks are typically equipped with intelligent control systems that enable:

One-button pump start/stop
Automatic foam proportioning
Remote-controlled fire monitor
Real-time pressure monitoring
Fault alarms

Procurement advice: Prioritize control systems that are simple to operate, highly stable, and easy to maintain.

» IV. Main Types of Industrial Fire Trucks

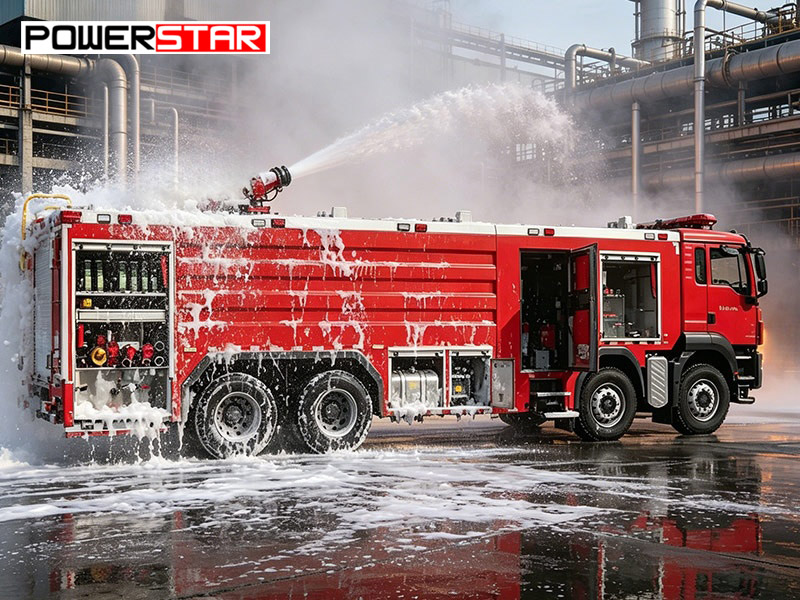

1. Foam Fire Truck

Foam fire trucks are widely used in petrochemical facilities, oil refineries, and fuel storage terminals. They produce stable foam that blankets the fuel surface, cuts off oxygen, and provides cooling.

Feature	Specification
Agent type	Foam solution (water + foam concentrate)
Proportioning ratio	1%, 3%, or 6% (automatic or fixed)
Water tank	2,000–12,000 L
Foam tank	200–2,000 L
Pump pressure	0.8–1.2 MPa
Monitor range	50–70 m
Extinguishing mechanism	Blanketing + cooling
Best for	Class B (flammable liquids), airports, petrochemical plants

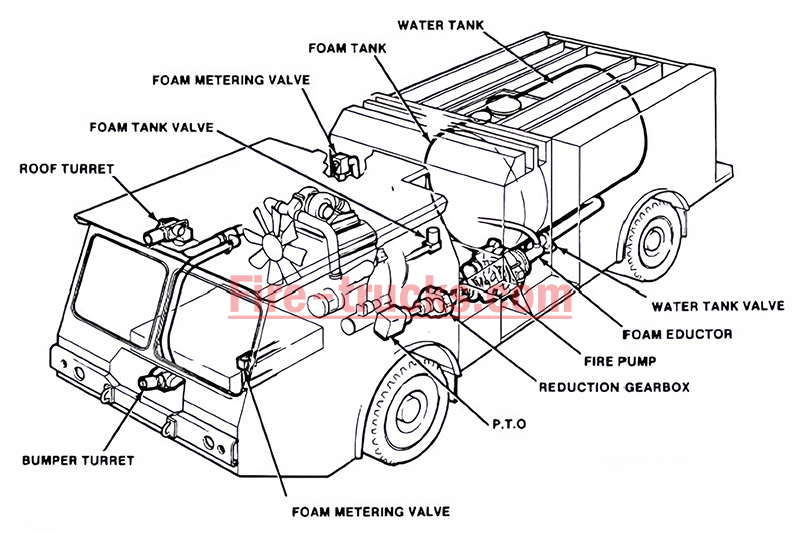

Foam operation:

Water and foam concentrate are mixed by the proportioner at a precise ratio (1%, 3%, or 6%)
The foam solution is pressurized by the fire pump (0.8–1.2 MPa)
The solution travels through the hose to the foam nozzle
At the nozzle, air is entrained into the solution, creating expanded foam
The foam is discharged as a thick, stable blanket that covers the fuel surface

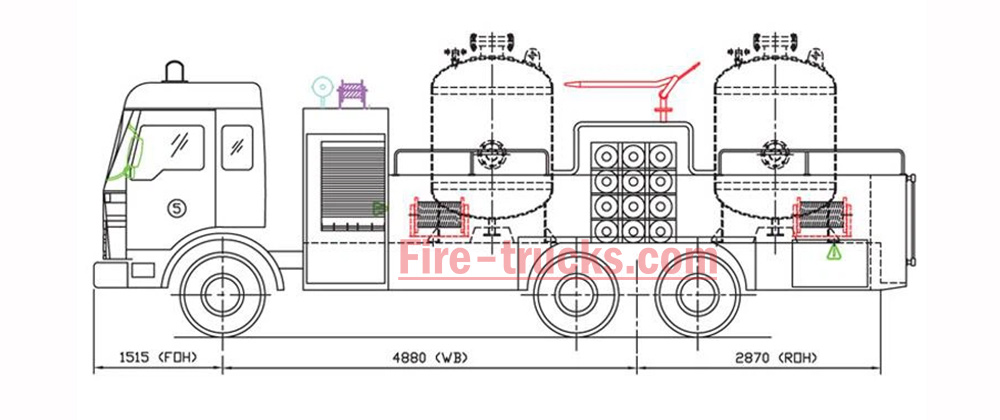

2. Dry Powder Fire Truck

Dry powder fire trucks are essential for facilities with gas or electrical fire risks, such as power stations and chemical plants.

Feature	Specification
Agent type	Dry chemical powder (monoammonium phosphate, sodium bicarbonate)
Powder tank	2,000–10,000 kg
Propellant	Compressed nitrogen (13–20 MPa)
Operating pressure	1.4–2.5 MPa
Monitor range	10–30 m
Discharge duration	30–120 seconds
Extinguishing mechanism	Chemical chain reaction interruption
Best for	Class B (gas fires), Class C (gas), electrical fires

Dry powder operation:

Compressed gas (nitrogen) is released from high-pressure cylinders
Gas passes through a pressure regulator (reduces from 13 MPa to 1.4–2.5 MPa) → enters the powder tank
Pressurized gas pushes powder out of the tank
Powder-gas mixture travels through hoses to the discharge nozzle
Powder is expelled as a dry cloud that interrupts the combustion chain reaction

3. Combination Unit (Water + Foam + Dry Powder)

Combination units offer maximum versatility for multi-hazard industrial sites. They carry water, foam concentrate, and dry powder in separate tanks.

Feature	Specification
Agent types	Water + foam + dry powder
Water tank	2,000–8,000 L
Foam tank	200–1,000 L
Powder tank	500–2,000 kg
Pump pressure	0.8–1.4 MPa
Monitor type	Dual-purpose (water/foam) + powder nozzle
Best for	Multi-hazard industrial parks

» V. Real-World Case Study: Petrochemical Plant Foam System Selection

Case Background:

A petrochemical plant with a 100-meter diameter crude oil storage tank required a new fire truck. The facility had no on-site fire department and relied on a contracted firefighting service.

Risk Assessment:

Primary risk: Class B (flammable liquids – crude oil, refined products)
Secondary risk: Class A (office buildings, warehouses)
Required agent: Foam (AR-AFFF for hydrocarbon fires)
Required flow: 4,000 L/min minimum at 0.8 MPa
Required foam concentrate: 3% AR-AFFF
Required foam supply: 45 minutes of continuous discharge

Solution Selected:

8×4 chassis (heavy-duty industrial chassis)
Foam fire truck with two-stage centrifugal pump
Water tank: 10,000 L
Foam tank: 2,000 L (3% AR-AFFF)
Remote-controlled foam monitor (4,000 L/min, 70 m range)
Fully automatic foam proportioner (1%–6% adjustable)
Auxiliary foam supply connection for foam tender support

Cost Comparison:

Vehicle Type	Initial Cost	Operating Cost (5 years)	Total 5-Year Cost
Municipal-style pumper (water only)	$350,000	$120,000	$470,000
Foam fire truck	$550,000	$180,000	$730,000
Combination unit (foam + powder)	$700,000	$220,000	$920,000

Result:

The foam fire truck was selected. It provided the required 4,000 L/min flow at 0.8 MPa with 45 minutes of continuous foam discharge. The system operated successfully during a small tank fire incident within 12 months of delivery, suppressing the fire before it could escalate.

Key Lesson:

For large petrochemical facilities, investing in a properly sized foam fire truck with adequate water and foam capacity is significantly cheaper than the cost of a major fire incident.

» VI. Cost Considerations for Industrial Fire Trucks

Cost Factor	Water Fire Truck	Foam Fire Truck	Dry Powder Fire Truck	Combination Unit
Vehicle purchase	$250,000–$450,000	$400,000–$700,000	$300,000–$550,000	$600,000–$900,000
Agent cost (annual)	Low (water only)	Moderate ($5,000–$15,000 foam concentrate)	Moderate ($3,000–$8,000 powder)	High ($8,000–$20,000)
Maintenance (annual)	$5,000–$10,000	$10,000–$20,000	$8,000–$15,000	$15,000–$25,000
Training (first year)	$5,000–$10,000	$10,000–$20,000	$8,000–$15,000	$15,000–$25,000

» VII. Frequently Asked Questions (FAQ)

Q: What is the most common fire truck type for petrochemical plants?

A: Foam fire trucks are the most common choice. They deliver fast knockdown, provide cooling to prevent re-ignition, and their foam blankets create a protective barrier over flammable liquids.

Q: Can a water-only fire truck be used for industrial firefighting?

A: Generally no. Water is ineffective on Class B (flammable liquid) and Class C (gas) fires. In some cases, water can even spread the fire by causing boiling over or splashing. Industrial fire trucks should carry foam or dry powder.

Q: What is the difference between a foam fire truck and a foam tender?

A: A foam fire truck is a self-contained firefighting vehicle with its own water tank, pump, foam tank, and monitor. A foam tender is a supply vehicle that transports large amounts of foam concentrate to the scene, supplying other fire trucks.

Q: How much foam concentrate does an industrial fire truck need?

A: For a typical petrochemical fire, 2,000–5,000 liters of foam concentrate is recommended. At a 3% proportioning ratio, this produces 66,000–165,000 liters of finished foam. For larger facilities or high-risk areas, 5,000–10,000 liters is recommended.

Q: What proportioning ratio should I choose?

A: For hydrocarbon fires (oil, gasoline, diesel), choose 3% AR-AFFF. For polar solvent fires (alcohol, ketones, esters), choose 6% AR-AFFF. Many facilities choose 3% as a compromise for mixed risks, but consult the foam manufacturer for specific recommendations.

Q: Is a combination unit (foam + powder) worth the extra cost?

A: For multi-hazard industrial parks where both flammable liquids and gas/electrical risks are present, yes. The versatility justifies the higher cost. For facilities with only one type of risk, a specialized unit is usually sufficient.

» VIII. Key Takeaways

Match the extinguishing agent to the fire risk (Class B = foam, Class C/gas/electrical = dry powder).
Ensure adequate water and foam storage (minimum 10,000 L water + 2,000 L foam for petrochemical facilities).
Verify pump flow meets facility requirements (minimum 4,000 L/min at 0.8 MPa for high-risk facilities).
Consider foam tender support for large incidents.
For multi-hazard industrial parks, a combination unit offers the greatest flexibility.
Consider total lifecycle cost, not just the initial purchase price.

» IX. Conclusion

Selecting the right fire truck for industrial firefighting requires a clear understanding of the facility's fire risks, the appropriate extinguishing agents, and the available fire truck types.

Foam fire trucks are the preferred choice for most petrochemical, oil refinery, and fuel storage applications.
Dry powder fire trucks are essential for gas, electrical, and chemical fire risks.
Combination units offer maximum versatility for multi-hazard industrial parks but come at a higher cost.
Water fire trucks remain a cost-effective solution for general manufacturing and warehousing with primarily Class A fire risks.
